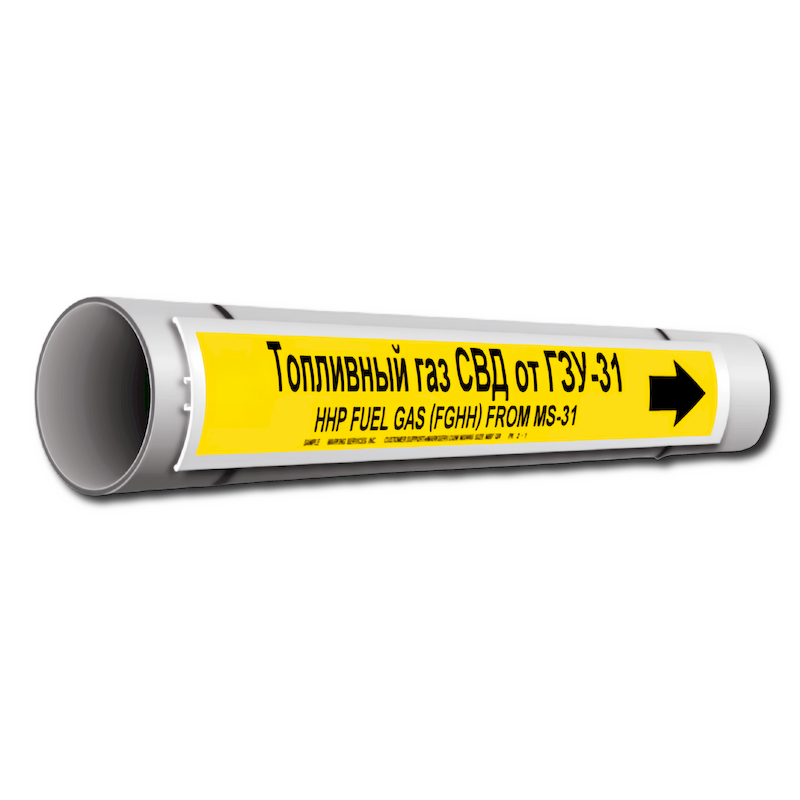

Carrier Pipe Markers

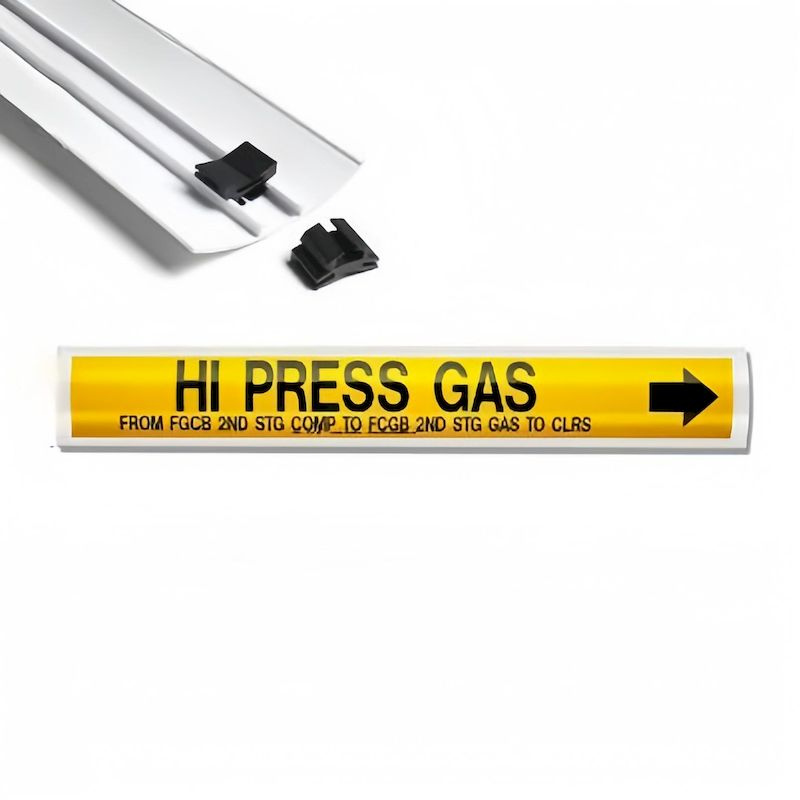

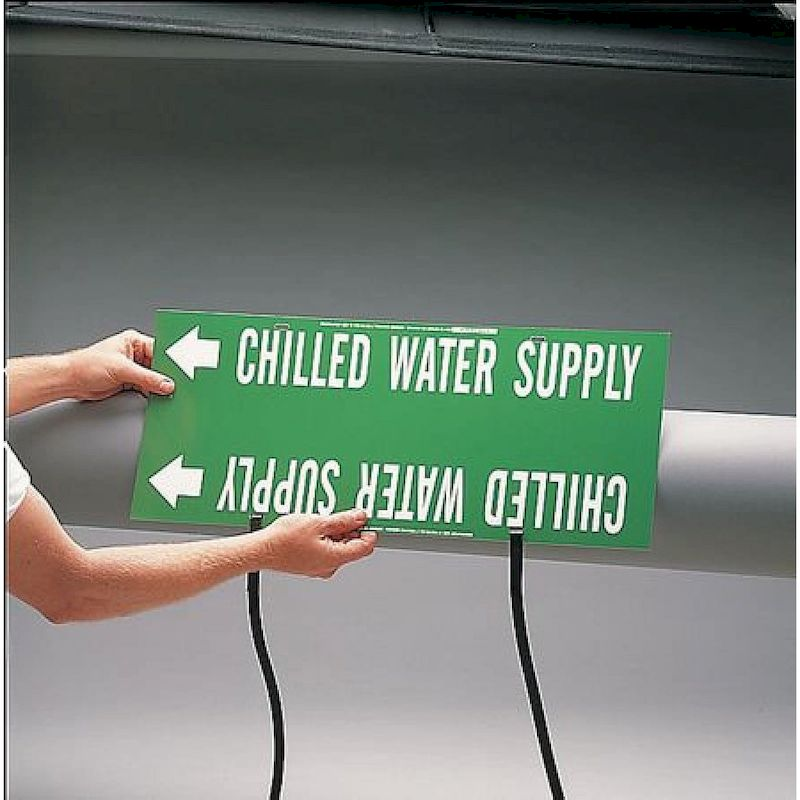

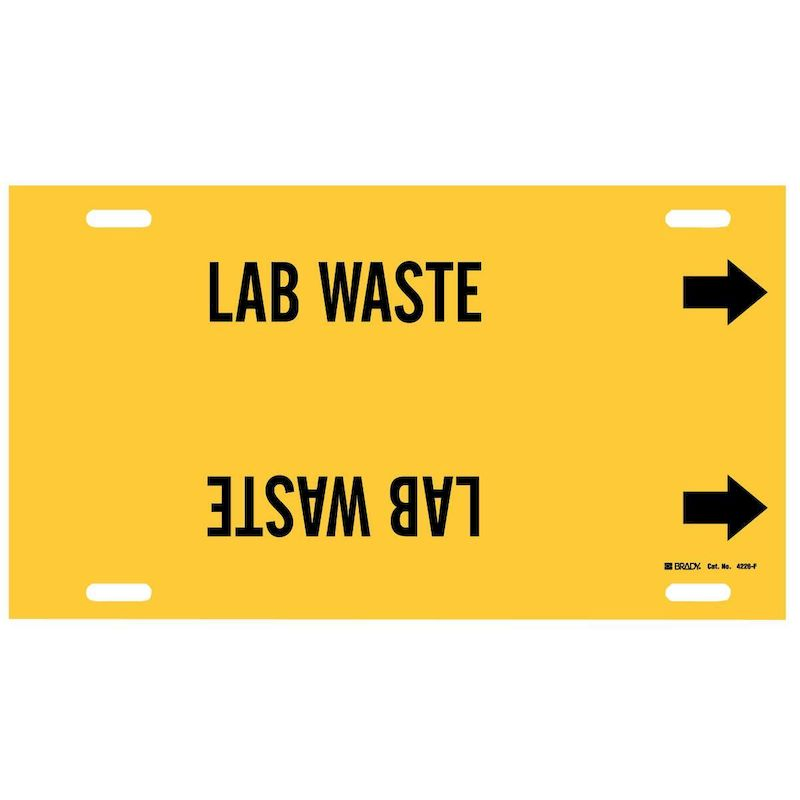

Carrier Pipe Markers are strap-type markers, consisting of weather-resistant labels and adjustable nylon feet. They're suitable for pipes with OD ≥ 3/4", including insulated ones. The plates are made of nylon, feature two sizes, and have through slots on the reverse side for easier installation. Workers can fix the strap position first or attach the strap and foot assemblies to the plates before tying it to the pipe. The labels indicate pipe-specific info like process lines, contents, flow direction, and colors required. Made of weather-resistant UV printing material, they're resilient to hydrocarbons, acids, bases, solvents. The plates operate between -40°C to 120°C, complying with ISO-14726 and ASME 13.1 standards.

Quantity:
Availability:





Inquire Add to Basket

Product Description

This product is an industrial-grade weather-resistant pipe identification label, using high-precision UV digital printing technology, combined with engineering-grade composite materials and 316 stainless steel rolled tape system, suitable for pipeline information marking in harsh environments. It supports fully customized content to meet the standardized management needs of chemical, energy, pharmaceutical and other industries.

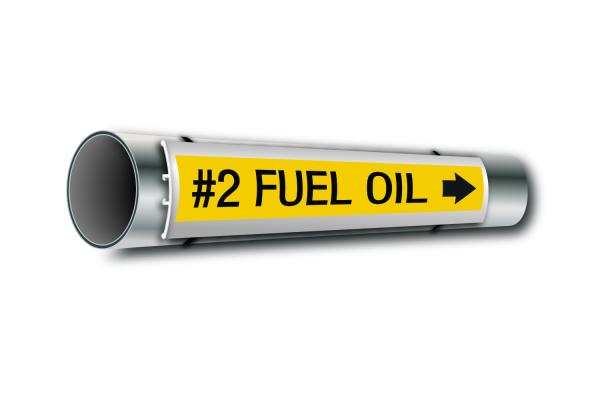

#2 FUEL OIL

Material and process parameters

Substrate Selection Chart
Material	Application	Advantageous Characteristics
AB	general industrial environmen	high toughness,impact resistance
PET	food and pharmaceutical industry	FDA approved chemical resistance.
PC	high temperature environment	125℃ continuous temperature resistance.
PVF	strong corrosive environment	strong acid and alkali resistance, excellent weather resistance
316SS	Permanent installation	seawater corrosion resistance, ultra-high strength
