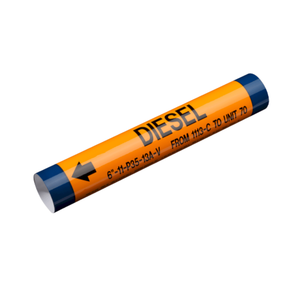

Stencils Pipe Markers

Stencils Pipe Markers are high-efficiency tools designed for industrial pipeline identification, enabling quick and precise spraying of markings on pipe surfaces that comply with ANSI/ASME A13.1 standards. Made from flexible vinyl with precision laser cutting, these stencils ensure clear, standardized markings while simplifying workflows. They are an ideal solution for pipeline identification management in industrial facilities, marine vessels, and other critical environments.

Key Features

1. Compliance Assurance

• Strict adherence to ANSI/ASME A13.1 standards, providing standardized text, colors, and size templates to meet industry compliance requirements.

2. Precision Dual-Template Design

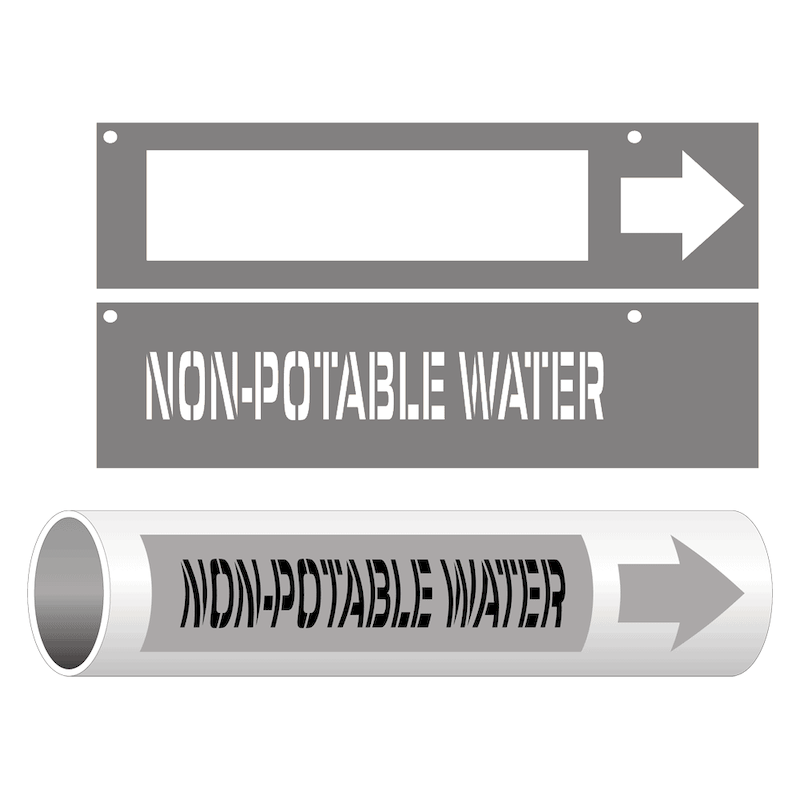

• Text Stencil + Background Stencil: A split design for step-by-step spraying, ensuring sharp alignment of text and background colors with no bleeding.

• Multi-Size Adaptability: Available in multiple letter heights (e.g., 1", 2", 3") and background sizes to fit pipes with diameters ranging from 1" to 24" (customizable upon request).

3. Flexible Material & Easy Operation

• High-Ductility Vinyl: Conforms seamlessly to curved pipe surfaces without warping, ensuring full coverage of the sprayed area.

• Pre-Coated Removable Adhesive: Peel-and-stick application for secure adhesion; residue-free removal after painting saves time and effort.

4. Durability & Versatility

• Compatible with oil-based paints, spray cans, and other coatings, producing long-lasting, wear-resistant markings suitable for high-temperature, humid, and harsh environments.

Application Scenarios

• Industrial Pipeline Systems: Hazardous material identification in chemical, petroleum, and power industries.

• Equipment Maintenance: Rapid updates to old markings or new pipe labeling to enhance safety management efficiency.

Specifications

Parameter	Description
Materia	Flexible vinyl (thickness: 0.17mm)
Adhesive Type	Removable pressure-sensitive adhesive (residue-free)
Adhesive Type	Text stencil + background stencil set
Pipe Diameter	1"-24" (customizable)
Packaging	Individually sealed, dust- and moisture-proof

Usage Instructions

1. Surface Preparation: Ensure the pipe surface is clean, dry, and free of oil or contaminants.

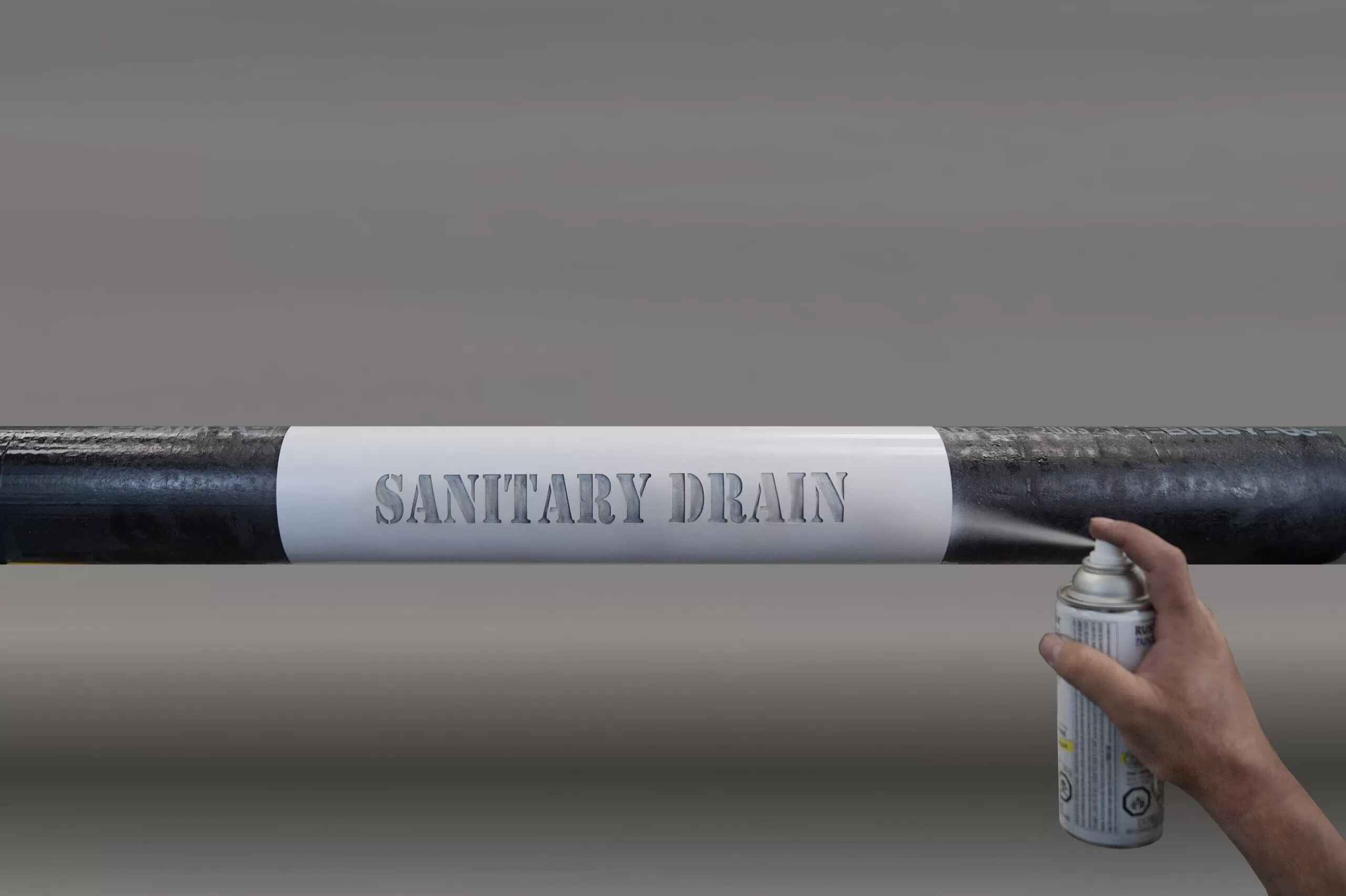

2. Stencil Application:

• Attach the background stencil first, spray the base color, and let it dry.

• Overlay the text stencil and spray the text color.

3. Stencil Removal: Carefully peel off the stencils before the paint fully dries to avoid adhesion.

4. Touch-Ups: Correct any uneven edges or spills with minor repainting or cleaning.

Precautions

• Storage: Keep in a cool, dry place to prevent adhesive degradation from high temperatures.

• Spraying Technique: Apply paint in light, multiple layers to avoid seepage under stencil edges.

• Removal: Handle gently to prevent smudging from wet paint.
