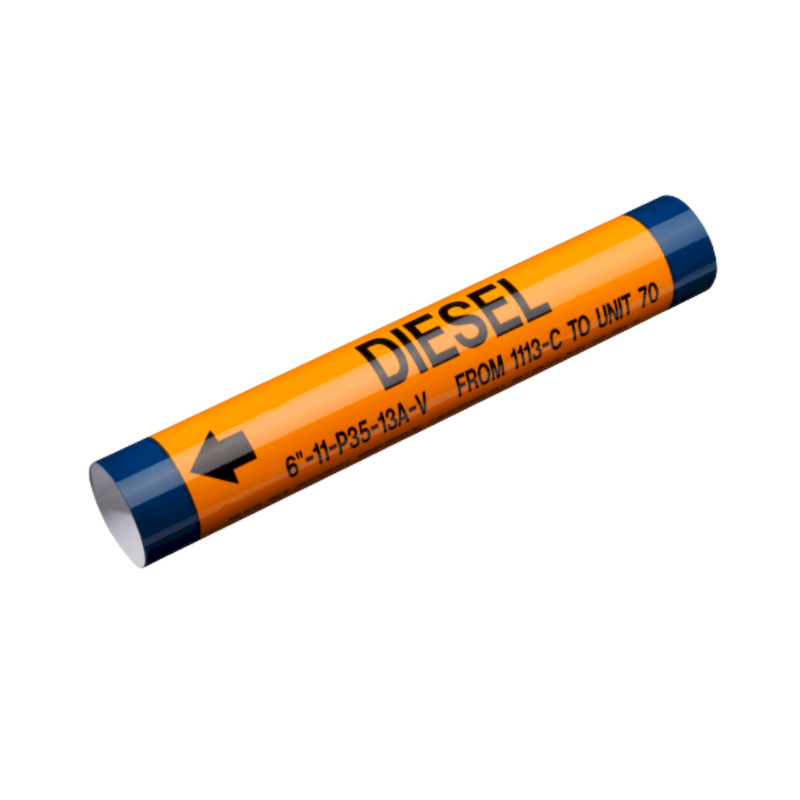

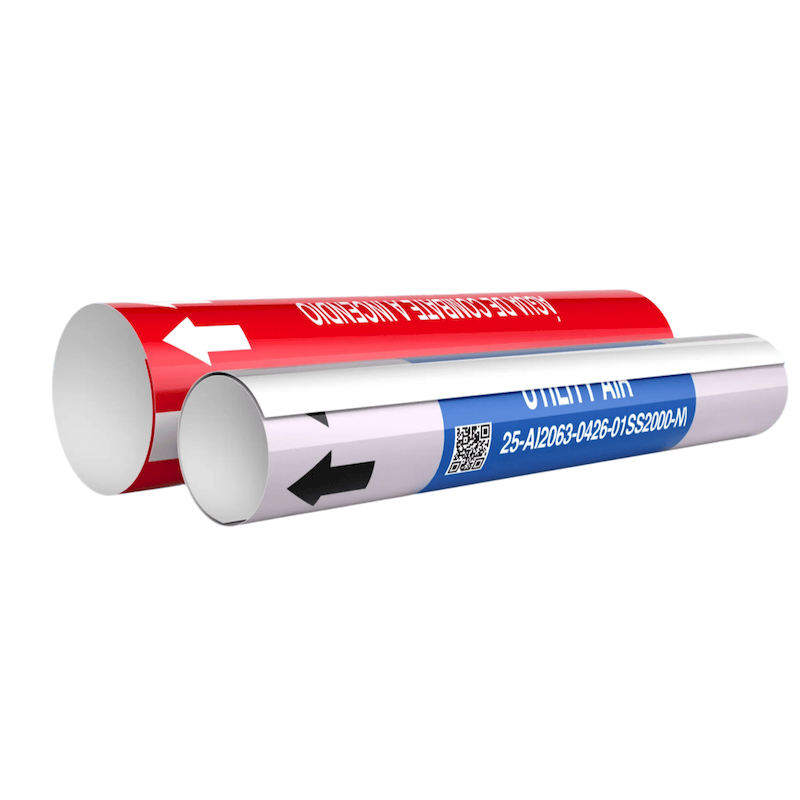

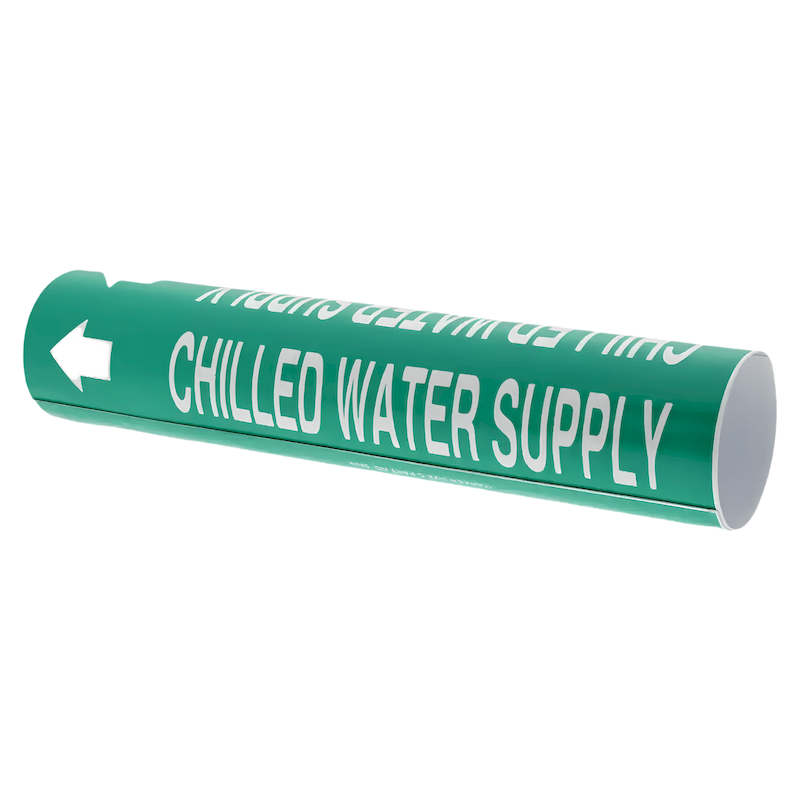

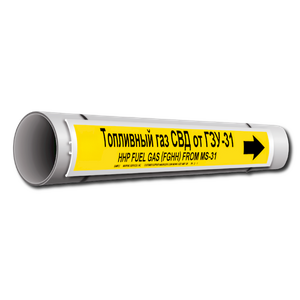

Pre-rolled pipe markers is a pipe marking product specially designed for ships, offshore platforms and FPSOs. It is made of polyester material and protective film. Its characteristics include:
Adhesive-Free Design: Prevents direct contact with the pipeline, avoiding corrosion.
Exceptional Performance: UV-resistant, seawater-resistant, and resistant to chemical corrosion (acids, alkalis, solvents).
Wide Applicability: Suitable for harsh environments such as salt spray and high humidity.
Reusable: Can be removed and reinstalled after pipeline maintenance.
| Item | Parameter/Description | |
|---|---|---|
| Material | Polyester + Protective Film |  |

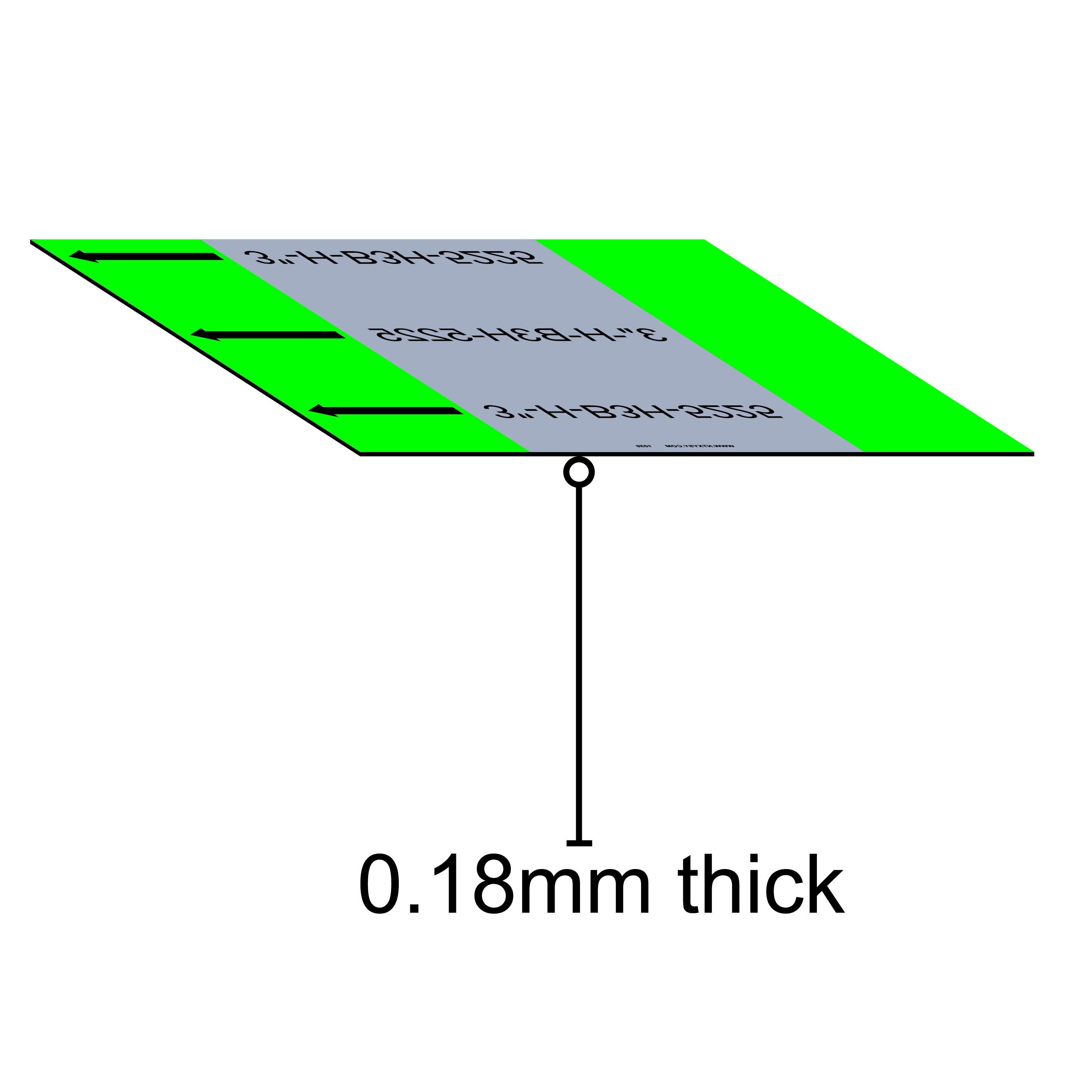

| Finished Thickness | 0.18mm | |
| Operating Temperature Range | -40℃ ~ 121℃ | |
| Service Life | 7~10 years | |
| UV Resistance | Excellent | |
| Seawater Resistance | Excellent | |
| Chemical Resistance | Excellent | |
| Mounting Method | Pre-coiled, self-bonding (no surface preparation required) |
Ship Pipeline Systems: Fuel, freshwater, firefighting lines, etc.
Offshore Production Platforms: Oil and gas transportation, chemical pipelines.
FPSOs (Floating Production Storage and Offloading Units): Crude oil processing, sewage discharge pipelines.
Installation Steps:

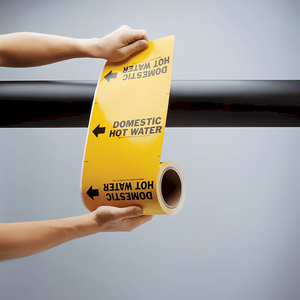

Pre-coiled design for easy wrapping around pipes.
Self-bonding feature, no glue or additional fixtures required.
Maintenance Requirements:
Can be reinstalled after removal without replacing the label.
Regularly check label clarity to avoid fading or wear.

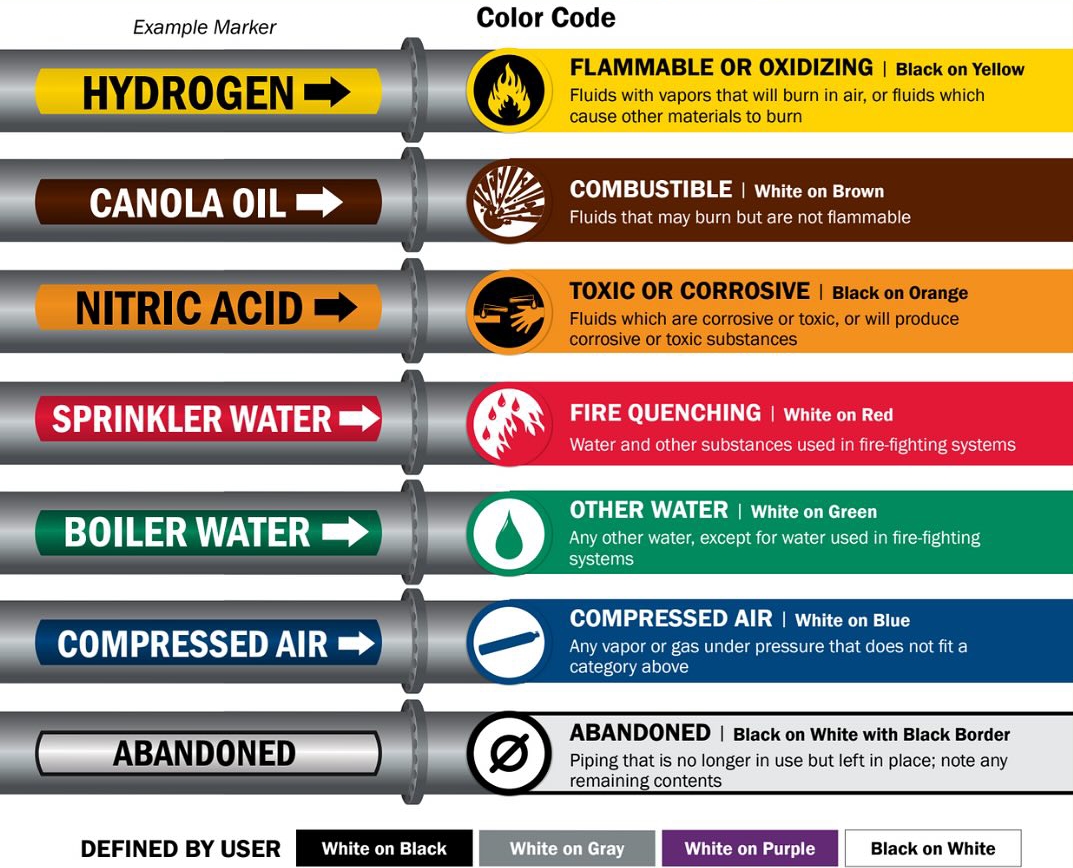

According to ISO 14726 and ASME A13.1, label colors and content must meet the following requirements:
Standard Color Examples:
Flammable Substances: Yellow label + black text.
Corrosive Substances: Orange label + black text.
Firefighting Water: Red label + white text.
Label Content:
Medium name (e.g., "SEAWATER").
Directional arrows (optional, recommended for enhanced safety).
Salt Spray Environment: Protective film effectively prevents salt erosion.
Extreme Temperatures: Stable performance within -40℃ to 121℃.
Chemical Corrosion: Resistant to corrosive media such as acids, alkalis, and solvents.
Avoid prolonged use in environments exceeding 121℃.
Ensure the label fully adheres to the pipe surface during installation to prevent edge lifting.
Label abandoned pipes with "ABANDONED" (white label + black text).
Note: This product is suitable for global marine engineering and industrial pipeline systems. For specific implementation details, refer to the ISO 14726 and ASME A13.1 standard documents.
